An electrohydrodynamic conduction liquid pumping system having a vessel configured to contain a liquid therein, a single pair or multi-pairs of electrodes disposed in a circularly spaced apart relationship to each other inside the vessel and configured to be oriented in the liquid. A power supply... Show moreAn electrohydrodynamic conduction liquid pumping system having a vessel configured to contain a liquid therein, a single pair or multi-pairs of electrodes disposed in a circularly spaced apart relationship to each other inside the vessel and configured to be oriented in the liquid. A power supply is coupled to the electrodes and configured to generate electric fields in-between each electrode pair to induce a net radial pumping of the liquid. A heat source is provided to produce heat sufficient to boil and vaporize the liquid while non-vaporized liquid moving toward the heat source prevents over-heating of the heat source. A heat sink is configured to have a operating temperature below the vaporization temperature of the liquid so that contact of the vapor with the heat sink will condense the vapor into a liquid to replenish the liquid supply moving toward the heat source.
Sponsorship: Illinois Institute of Technology

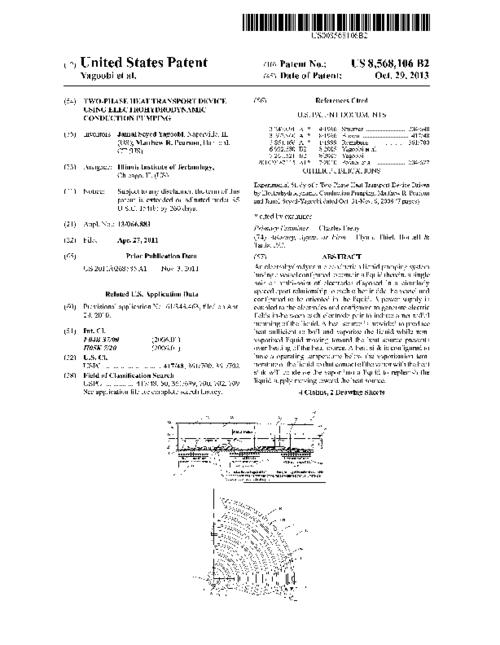

United States Patent
Primary US Patent Classification 417/48
US Patent Classification 361/700
US Patent Classification 361/702
International Patent Classification F04B 37/00
International Patent Classification H05K 7/20 Show less
