Description

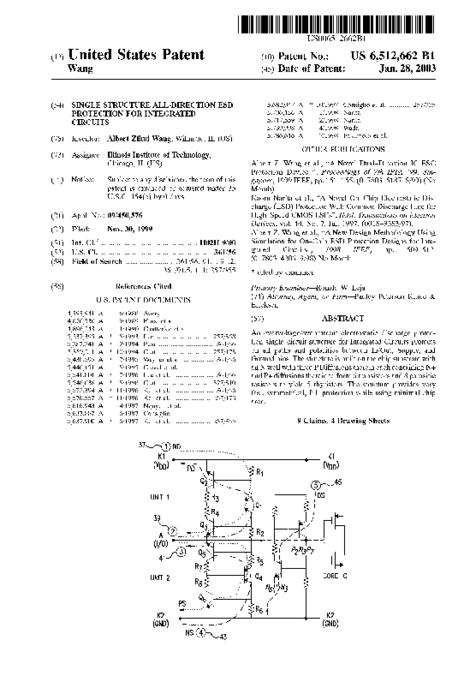

An overvoltage/overcurrent electrostatic discharge protection single circuit structure for Integrated Circuits protects on all paths and polarities between In/Out, Supply, and Ground pins. The structure is built on the chip substrate with an N well with three P Diffusions therein each containing... Show moreAn overvoltage/overcurrent electrostatic discharge protection single circuit structure for Integrated Circuits protects on all paths and polarities between In/Out, Supply, and Ground pins. The structure is built on the chip substrate with an N well with three P Diffusions therein each containing N+ and P+ diffusions therein to form 6 transistors and 8 parasitic resistors to yield 5 thyristors. The structure provides very fast, symmetrical, full protection while using minimal chip area.
Sponsorship: Illinois Institute of Technology
United States Patent Show less
