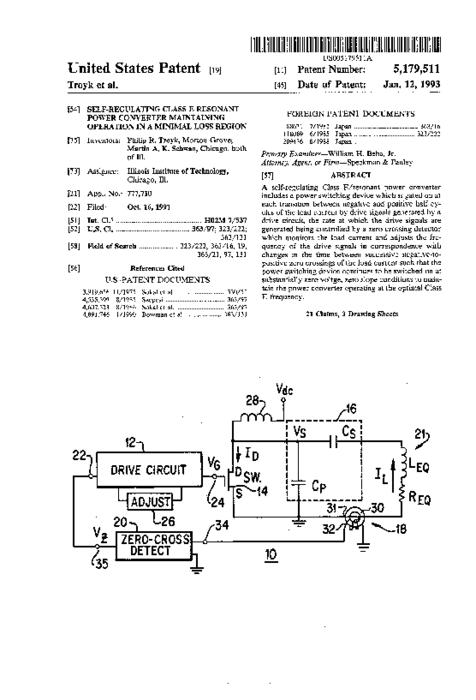

A self-regulating Class E/resonant power converter includes a power switching device which is gated on at each transition between negative and positive half cycles of the load current by drive signals generated by a drive circuit, the rate at which the drive signals are generated being controlled... Show moreA self-regulating Class E/resonant power converter includes a power switching device which is gated on at each transition between negative and positive half cycles of the load current by drive signals generated by a drive circuit, the rate at which the drive signals are generated being controlled by a zero crossing detector which monitors the load current and adjusts the frequency of the drive signals in correspondence with changes in the time between successive negative-to-positive zero crossings of the load current such that the power switching device continues to be switched on at substantially zero voltage, zero slope conditions to maintain the power converter operating at the optimal Class E frequency.
Sponsorship: Illinois Institute of Technology
United States Patent Show less
