Monochrome and color television recording and playback circuitry for coupling of a video magnetic transducer head with a standard broadcast television receiver, the circuitry including an inductor connected in series between the transducer head and the input of the playback amplifier and disposed... Show moreMonochrome and color television recording and playback circuitry for coupling of a video magnetic transducer head with a standard broadcast television receiver, the circuitry including an inductor connected in series between the transducer head and the input of the playback amplifier and disposed closely adjacent the amplifier input for blocking transmission of stray radio frequency energy to the amplifier.
Sponsorship: IIT Research Institute

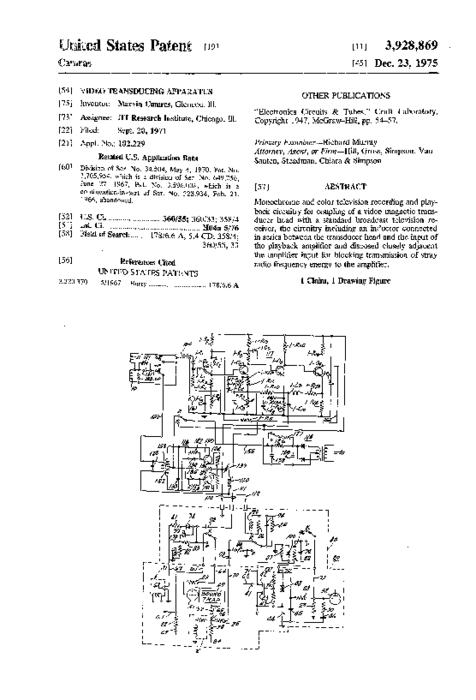

United States Patent Show less
