Monochrome and color television recording and playback circuitry for coupling of a video magnetic transducer head with a standard broadcast television receiver, the circuitry including a coupling capacitor and means for supplying electric charge to one terminal of the capaictor, a record-playback... Show moreMonochrome and color television recording and playback circuitry for coupling of a video magnetic transducer head with a standard broadcast television receiver, the circuitry including a coupling capacitor and means for supplying electric charge to one terminal of the capaictor, a record-playback switch connected between the other terminal of the capacitor and one terminal of the head winding, and a resistor for maintaining the other terminal of the capacitor substantially at ground potential while the switch is in playback position to prevent surges of current through the head winding during switching.
Sponsorship: IIT Research Institute

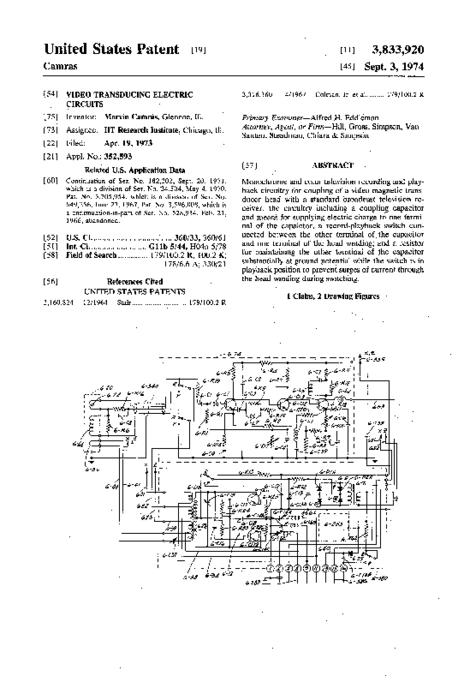

United States Patent Show less
