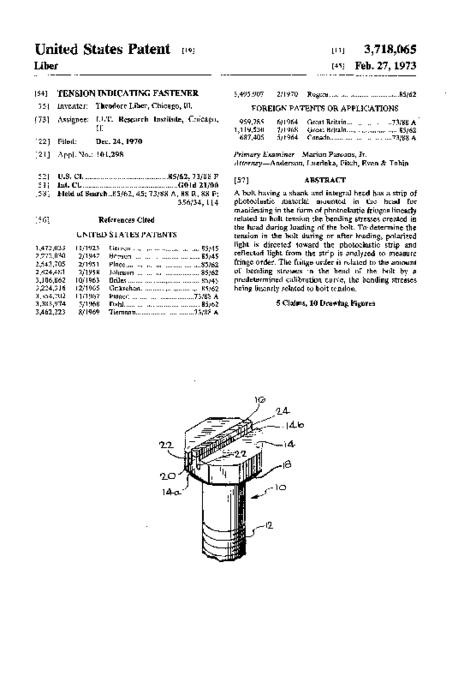

A bolt having a shank and integral head has a strip of photoelastic material mounted in the head for manifesting in the form of photoelastic fringes linearly related to bolt tension the bending stresses created in the head during loading of the bolt. To determine the tension in the bolt during or... Show moreA bolt having a shank and integral head has a strip of photoelastic material mounted in the head for manifesting in the form of photoelastic fringes linearly related to bolt tension the bending stresses created in the head during loading of the bolt. To determine the tension in the bolt during or after loading, polarized light is directed toward the photoelastic strip and reflected light from the strip is analyzed to measure fringe order. The fringe order is related to the amount of bending stresses in the head of the bolt by a predetermined calibration curve, the bending stresses being linearly related to bolt tension.
Sponsorship: IIT Research Institute
United States Patent Show less
