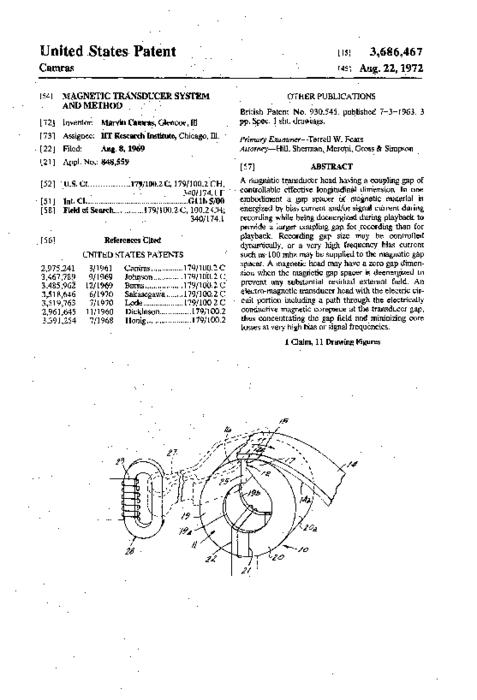

A magnetic transducer head having a coupling gap of controllable effective longitudinal dimension. In one embodiment a gap spacer of magnetic material is energized by bias current and/or signal current during recording while being deenergized during playback to provide a larger coupling gap for... Show moreA magnetic transducer head having a coupling gap of controllable effective longitudinal dimension. In one embodiment a gap spacer of magnetic material is energized by bias current and/or signal current during recording while being deenergized during playback to provide a larger coupling gap for recording than for playback. Recording gap size may be controlled dynamically, or a very high frequency bias current such as 100 mhz may be supplied to the magnetic gap spacer. A magnetic head may have a zero gap dimension when the magnetic gap spacer is deenergized to prevent any substantial residual external field. An electro-magnetic transducer head with the electric circuit portion including a path through the electrically conductive magnetic corepiece at the transducer gap, thus concentrating the gap field and mininizing core losses at very high bias or signal frequencies.
Sponsorship: IIT Research Institute
United States Patent Show less
