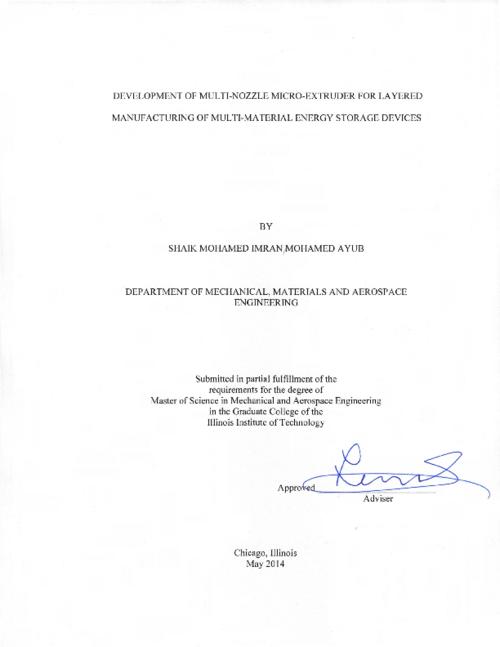

DEVELOPMENT OF MULTI-NOZZLE MICRO-EXTRUDER FOR LAYERED MANUFACTURING OF MULTI-MATERIAL ENERGY STORAGE DEVICES

Access to IIT electronic theses and dissertations is restricted to IIT community members with a valid iit.edu email address. Please log in using your iit.edu email address and password. Requests for external users are handled through inter-library loan and can be emailed to iitmyillms@iit.edu.

Description

Additive Manufacturing is critical in the development of high energy density storage devices for its flexibility to manufacture complex parts with different discrete compositions like cathodes, anodes and electrolytes. Such storage devices under sub- millimeter scale with micro-structured... Show moreAdditive Manufacturing is critical in the development of high energy density storage devices for its flexibility to manufacture complex parts with different discrete compositions like cathodes, anodes and electrolytes. Such storage devices under sub- millimeter scale with micro-structured interdigitated layout could significantly improve its power and energy density. Over the past few years, scientific communities in Rapid Prototyping technology have been mainly focusing on various methods of Modeling and representing Multi-Material Object under single CAD data structure which would enable post processing and rapid prototyping of Multi-Material Object (MMO). This thesis will address the processes involved in the development of Multi-Material Micro Extrusion (M3E) device for manufacturing high density energy storage devices through discrete composition control in Solid Freeform Fabrication (SFF). The primary goal of the research is to develop a rectilinear motion platform with a multi-extrusion system and an open loop control interface to regulate the unreliable extrusion of slurries of different discrete composition. The dissertation will also address the software methodology to discretize 3D-CAD models to represent multiple material composition followed by slicing it into 2.5D layers, which will enable to create Computer Numeric Control (CNC) path program. The scope of this research is further extended to study and optimize various mechanical process inputs with respect to extrusion output parameters.
M.S. in Mechanical and Aerospace Engineering, May 2014 Show less

Details
Department

MMAE / Mechanical, Materials, and Aerospace Engineering

Title

DEVELOPMENT OF MULTI-NOZZLE MICRO-EXTRUDER FOR LAYERED MANUFACTURING OF MULTI-MATERIAL ENERGY STORAGE DEVICES

Institution

Illinois Institute of Technology

Creator(s)

Mohamed Ayub, Shaik Mohamed Imran

Advisor(s)

Shaw, Leon

Date

2014
2014-05

Description

Additive Manufacturing is critical in the development of high energy density storage devices for its flexibility to manufacture complex parts with different discrete compositions like cathodes,... Show moreAdditive Manufacturing is critical in the development of high energy density storage devices for its flexibility to manufacture complex parts with different discrete compositions like cathodes, anodes and electrolytes. Such storage devices under sub- millimeter scale with micro-structured interdigitated layout could significantly improve its power and energy density. Over the past few years, scientific communities in Rapid Prototyping technology have been mainly focusing on various methods of Modeling and representing Multi-Material Object under single CAD data structure which would enable post processing and rapid prototyping of Multi-Material Object (MMO). This thesis will address the processes involved in the development of Multi-Material Micro Extrusion (M3E) device for manufacturing high density energy storage devices through discrete composition control in Solid Freeform Fabrication (SFF). The primary goal of the research is to develop a rectilinear motion platform with a multi-extrusion system and an open loop control interface to regulate the unreliable extrusion of slurries of different discrete composition. The dissertation will also address the software methodology to discretize 3D-CAD models to represent multiple material composition followed by slicing it into 2.5D layers, which will enable to create Computer Numeric Control (CNC) path program. The scope of this research is further extended to study and optimize various mechanical process inputs with respect to extrusion output parameters. Show less

Type

Thesis

File type

application/pdf

Access

Restricted Access

Rights

In Copyright
http://rightsstatements.org/page/InC/1.0/

Identifier

http://hdl.handle.net/10560/3305
