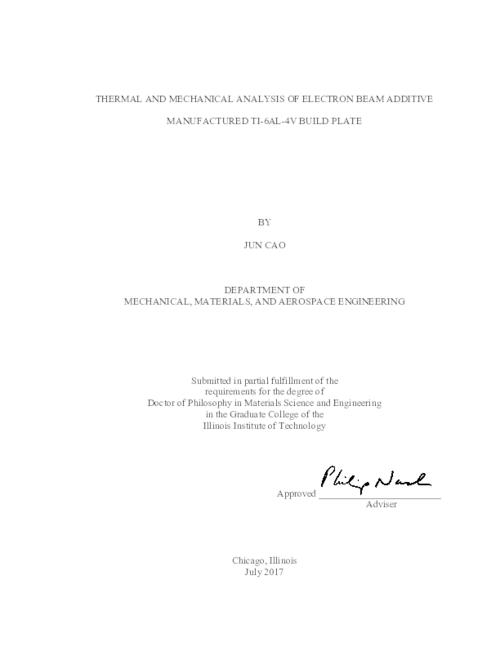

THERMAL AND MECHANICAL ANALYSIS OF ELECTRON BEAM ADDITIVE MANUFACTURED TI-6AL-4V BUILD PLATE

Access to IIT electronic theses and dissertations is restricted to IIT community members with a valid iit.edu email address. Please log in using your iit.edu email address and password. Requests for external users are handled through inter-library loan and can be emailed to iitmyillms@iit.edu.

Description

Electron Beam Additive Manufacturing (EBAM), used to fabricate net or nearnet- shaped components based on a sliced CAD model, offers a potential alternative solution for the processing of titanium components, especially for large parts. However, the components fabricated using EBAM exhibit... Show moreElectron Beam Additive Manufacturing (EBAM), used to fabricate net or nearnet- shaped components based on a sliced CAD model, offers a potential alternative solution for the processing of titanium components, especially for large parts. However, the components fabricated using EBAM exhibit significant difficulties in quality control and quality assurance due to lack of knowledge of thermo-mechanical-metallurgical relationship. In this work, the thermo-mechanical behavior of wire-feed EBAM for largescale Ti-6Al-4V build plates has been investigated computationally and experimentally, with special attention to the distortion and residual stress, as well as the microstructural evolution. A 3D transient fully coupled thermo-mechanical finite element (FE) model was built, calibrated, and rigorously validated. To ensure the accuracy of the model, the bulk residual strain distribution was measured using neutron diffraction (ND), and the numerically simulated thermal profiles were physically simulated using a Gleeble® 3500, in addition to the conventional model validation methods. Good agreement was found between the simulation results and experimental measurements. A series of simulations were performed to determine the optimum process conditions. The simulation results indicated that preheating, increasing deposition power and scan rate, and decreasing interval cooling time effectively mitigates the distortion and residual stress. For EBAM Ti-6Al-4V build plates, increasing the energy input and reducing the heat loss renders smaller temperature difference and thermal expansion mismatch, consequently, leading to a lower level of distortion and residual stress. The deposited cladding was characterized by large columnar grains growing across layers, a bottom region with repeated macroscopic bands and a top region without these bands. The band structure exhibits mostly colony α. A fine basket-weave structure is observed above the band structure, and a coarse basket-weave structure is observed below the band structure. The simulated thermal profiles were used to understand the observed microstructure. It was found that the microstructure variation in the cladding of EBAM Ti-6Al-4V build plates is strongly dependent on the peak temperature within the (α+β) phase region, and heating rate and cooling rate have insignificant effects on it. The non-equilibrium solid-solid phase transformation of Ti-6Al-4V under continuous heating/cooling were experimentally investigated. The kinetics of phase transformation was quantitively studied and modeled using a non-isothermal JMAK (Johnson-Mehl-Avrami-Kolmorgorov) model, with the activation energy QA=123.9 kJ/mole, JMAK exponent n=1.8, and the calculated ln (k0) varied between 9.15 to 10.6 for different heating rate.
Ph.D. in Materials Science and Engineering, July 2017 Show less

Details
Department

MMAE / Mechanical, Materials, and Aerospace Engineering

Title

THERMAL AND MECHANICAL ANALYSIS OF ELECTRON BEAM ADDITIVE MANUFACTURED TI-6AL-4V BUILD PLATE

Institution

Illinois Institute of Technology

Creator(s)

Cao, Jun

Advisor(s)

Nash, Philip

Date

2017
2017-07

Description

Electron Beam Additive Manufacturing (EBAM), used to fabricate net or nearnet- shaped components based on a sliced CAD model, offers a potential alternative solution for the processing of titanium... Show moreElectron Beam Additive Manufacturing (EBAM), used to fabricate net or nearnet- shaped components based on a sliced CAD model, offers a potential alternative solution for the processing of titanium components, especially for large parts. However, the components fabricated using EBAM exhibit significant difficulties in quality control and quality assurance due to lack of knowledge of thermo-mechanical-metallurgical relationship. In this work, the thermo-mechanical behavior of wire-feed EBAM for largescale Ti-6Al-4V build plates has been investigated computationally and experimentally, with special attention to the distortion and residual stress, as well as the microstructural evolution. A 3D transient fully coupled thermo-mechanical finite element (FE) model was built, calibrated, and rigorously validated. To ensure the accuracy of the model, the bulk residual strain distribution was measured using neutron diffraction (ND), and the numerically simulated thermal profiles were physically simulated using a Gleeble® 3500, in addition to the conventional model validation methods. Good agreement was found between the simulation results and experimental measurements. A series of simulations were performed to determine the optimum process conditions. The simulation results indicated that preheating, increasing deposition power and scan rate, and decreasing interval cooling time effectively mitigates the distortion and residual stress. For EBAM Ti-6Al-4V build plates, increasing the energy input and reducing the heat loss renders smaller temperature difference and thermal expansion mismatch, consequently, leading to a lower level of distortion and residual stress. The deposited cladding was characterized by large columnar grains growing across layers, a bottom region with repeated macroscopic bands and a top region without these bands. The band structure exhibits mostly colony α. A fine basket-weave structure is observed above the band structure, and a coarse basket-weave structure is observed below the band structure. The simulated thermal profiles were used to understand the observed microstructure. It was found that the microstructure variation in the cladding of EBAM Ti-6Al-4V build plates is strongly dependent on the peak temperature within the (α+β) phase region, and heating rate and cooling rate have insignificant effects on it. The non-equilibrium solid-solid phase transformation of Ti-6Al-4V under continuous heating/cooling were experimentally investigated. The kinetics of phase transformation was quantitively studied and modeled using a non-isothermal JMAK (Johnson-Mehl-Avrami-Kolmorgorov) model, with the activation energy QA=123.9 kJ/mole, JMAK exponent n=1.8, and the calculated ln (k0) varied between 9.15 to 10.6 for different heating rate. Show less

Type

Dissertation

File type

application/pdf

Subject

Band structure
Electron beam additive manufacture
Neutron diffraction
Phase transformation kinetics
Residual stress and distortion
Thermo-mechanical modeling

Access

Restricted Access

Rights

In Copyright
http://rightsstatements.org/page/InC/1.0/

Identifier

http://hdl.handle.net/10560/4225
