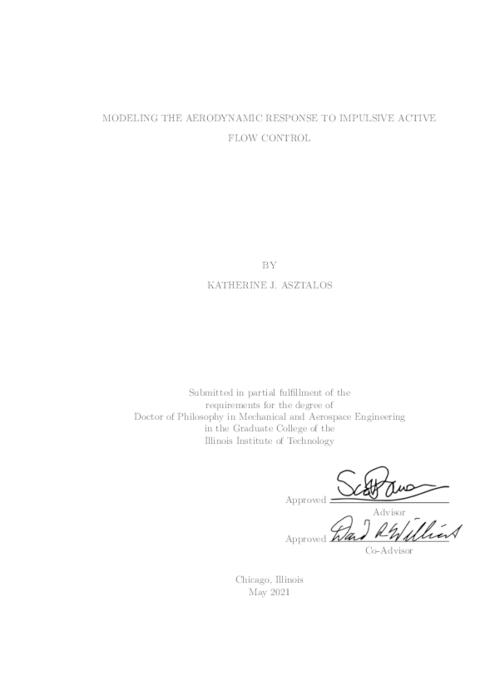

Modeling the Aerodynamic Response to Impulsive Active Flow Control

Access to IIT electronic theses and dissertations is restricted to IIT community members with a valid iit.edu email address. Please log in using your iit.edu email address and password. Requests for external users are handled through inter-library loan and can be emailed to iitmyillms@iit.edu.

Description

In unsteady aerodynamics the response to external disturbances can depend significantly on the initial condition, and the extent to which this impacts the ability to model the flowfield can vary. In this work, we look to develop a model that can capture and predict the long-time response to... Show moreIn unsteady aerodynamics the response to external disturbances can depend significantly on the initial condition, and the extent to which this impacts the ability to model the flowfield can vary. In this work, we look to develop a model that can capture and predict the long-time response to actuation, which we suspect to be sensitive to the instantaneous state. We investigate whether a physical understanding of the short-time response to impulsive actuation can be obtained, with the goal of understanding the observed physical phenomenon present in the immediate response to this type of actuation. We find that the response to impulsive actuation is sensitive to the instantaneous wake, and that the short-time response is directly proportional to the time rate of change of the actuation input. Computational simulations of a stalled NACA 0009 airfoil subject to leading-edge synthetic jet actuation were performed. Full state information, as well as force response measurements, were collected using an immersed boundary method (IBM) numerical code. The numerical simulations performed sought to characterize the response to actuation by varying the actuation parameters, such as the strength, direction, and phase at which the onset of actuation occurs. It was found that the long-time response to actuation can be sensitive to the instantaneous wake state at the onset of actuation. The ability to extract models that describe the complex behavior of the system provides additional insight into the dominant features governing the response of such systems, as well as achieves predictive capabilities of the systems' response. The data-driven models, which are identified using variants of dynamic mode decomposition, can capture both the short- and long-time response of the system to actuation. Predictive models are identified using multiple trajectories of data corresponding to varying the phase of vortex shedding at which the onset of actuation occurs. These models achieve accurate predictions for off-design cases as well. It is also shown that multiple control objectives with the same actuator can be achieved. Classical theory aids in understanding the physics governing unsteady aerodynamic motion and the response to disturbances. Theoretical models are developed using the assumptions from classical unsteady aerodynamic theory, which provide insight into the forms that the data-driven models take. The effect of short-duration momentum injection actuation is modeled through a combination of source/sink, doublet, and vortex elements. Regardless of the precise elements used in the theoretical model, the lift response is composed of a contribution directly proportional to the rate of change of actuation strength, and a contribution that persists after the actuation burst ends that arises due to the enforcement of the Kutta condition. Methodologies that retain the physics inherent to the system by projecting the governing equations of motion onto a well-suited basis are extremely valuable for gaining physical insight and understanding into the dynamics of the flowfield. A new methodology is proposed for extracting spectral content from systems with limited data available using projection-based modeling approaches. There are challenges associated with using modal decomposition-based modeling techniques for systems exhibiting large transient dynamics due to external inputs, which is applicable in this particular instance and for related systems. The methodology presented here shows how the dynamics of this system can be understood through analysis of optimal finite-time horizon transient energy growth, applied to reduced-order models identified using actuation response data with either data-driven or physics-based models. A novel methodology is proposed to guide future experimental actuation design to achieve maximal response by considering an optimal forcing mode, identified from considering the optimal perturbation of the full unactuated system, which maximizes a given output. Show less

Details
Department

MMAE / Mechanical, Materials, and Aerospace Engineering

Title

Modeling the Aerodynamic Response to Impulsive Active Flow Control

Institution

Illinois Institute of Technology

Creator(s)

Asztalos, Katherine

Advisor(s)

Dawson, Scott T.M.
Williams, David R.

Date

2021

Description

In unsteady aerodynamics the response to external disturbances can depend significantly on the initial condition, and the extent to which this impacts the ability to model the flowfield can vary.... Show moreIn unsteady aerodynamics the response to external disturbances can depend significantly on the initial condition, and the extent to which this impacts the ability to model the flowfield can vary. In this work, we look to develop a model that can capture and predict the long-time response to actuation, which we suspect to be sensitive to the instantaneous state. We investigate whether a physical understanding of the short-time response to impulsive actuation can be obtained, with the goal of understanding the observed physical phenomenon present in the immediate response to this type of actuation. We find that the response to impulsive actuation is sensitive to the instantaneous wake, and that the short-time response is directly proportional to the time rate of change of the actuation input. Computational simulations of a stalled NACA 0009 airfoil subject to leading-edge synthetic jet actuation were performed. Full state information, as well as force response measurements, were collected using an immersed boundary method (IBM) numerical code. The numerical simulations performed sought to characterize the response to actuation by varying the actuation parameters, such as the strength, direction, and phase at which the onset of actuation occurs. It was found that the long-time response to actuation can be sensitive to the instantaneous wake state at the onset of actuation. The ability to extract models that describe the complex behavior of the system provides additional insight into the dominant features governing the response of such systems, as well as achieves predictive capabilities of the systems' response. The data-driven models, which are identified using variants of dynamic mode decomposition, can capture both the short- and long-time response of the system to actuation. Predictive models are identified using multiple trajectories of data corresponding to varying the phase of vortex shedding at which the onset of actuation occurs. These models achieve accurate predictions for off-design cases as well. It is also shown that multiple control objectives with the same actuator can be achieved. Classical theory aids in understanding the physics governing unsteady aerodynamic motion and the response to disturbances. Theoretical models are developed using the assumptions from classical unsteady aerodynamic theory, which provide insight into the forms that the data-driven models take. The effect of short-duration momentum injection actuation is modeled through a combination of source/sink, doublet, and vortex elements. Regardless of the precise elements used in the theoretical model, the lift response is composed of a contribution directly proportional to the rate of change of actuation strength, and a contribution that persists after the actuation burst ends that arises due to the enforcement of the Kutta condition. Methodologies that retain the physics inherent to the system by projecting the governing equations of motion onto a well-suited basis are extremely valuable for gaining physical insight and understanding into the dynamics of the flowfield. A new methodology is proposed for extracting spectral content from systems with limited data available using projection-based modeling approaches. There are challenges associated with using modal decomposition-based modeling techniques for systems exhibiting large transient dynamics due to external inputs, which is applicable in this particular instance and for related systems. The methodology presented here shows how the dynamics of this system can be understood through analysis of optimal finite-time horizon transient energy growth, applied to reduced-order models identified using actuation response data with either data-driven or physics-based models. A novel methodology is proposed to guide future experimental actuation design to achieve maximal response by considering an optimal forcing mode, identified from considering the optimal perturbation of the full unactuated system, which maximizes a given output. Show less

Type

Dissertation

File type

application/pdf

Subject

Aerospace engineering
Mechanical engineering
Mathematics
Active flow control
Computational fluid dynamics
Fluid dynamics
Modal analysis
Reduced-order modeling
Unsteady aerodynamics

Access

Restricted Access

Rights

In Copyright
http://rightsstatements.org/page/InC/1.0/

Identifier

http://hdl.handle.net/10560/islandora:1011798
