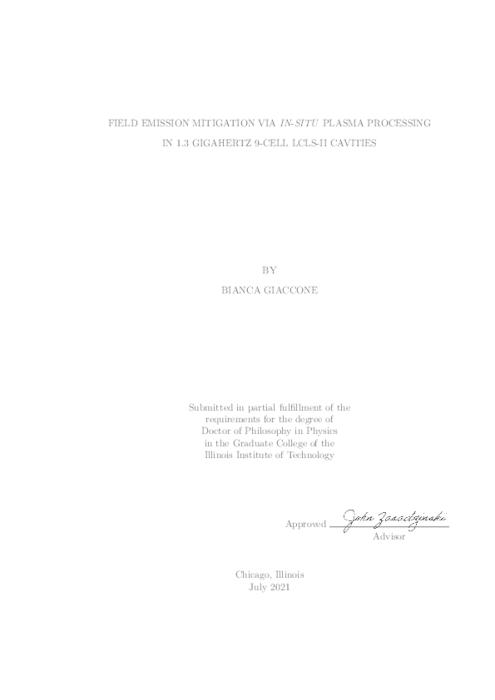

FIELD EMISSION MITIGATION VIA IN-SITU PLASMA PROCESSING IN 1.3 GIGAHERTZ 9-CELL LCLS-II CAVITIES

Access to IIT electronic theses and dissertations is restricted to IIT community members with a valid iit.edu email address. Please log in using your iit.edu email address and password. Requests for external users are handled through inter-library loan and can be emailed to iitmyillms@iit.edu.

Description

Field emission (FE) is one of the limiting factors in superconducting radiofrequency cavities' performance. It is known that even a few monolayers of surface adsorbed... Show moreField emission (FE) is one of the limiting factors in superconducting radiofrequency cavities' performance. It is known that even a few monolayers of surface adsorbed
contaminants can lower the niobium work function and increase the FE.
In order to address the field emission that may arise once the accelerator is already
assembled, it was decided to develop plasma processing for the Linac Coherent Light
Source II, a method to mitigate field emission in-situ.
Starting from Doleans's successful experience with plasma processing for high beta
cavities, Fermi National Accelerator Laboratory is developing plasma cleaning
for TESLA shaped 1.3 GHz 9-cell cavities. A new method of ignition based on the
higher order modes and couplers was developed, along with a detection procedure
that allows to identify the location of the plasma inside the cavity. In this work are
presented the results of plasma processing applied to 1.3 GHz cavities, both single-cell
and 9-cells. The cavities were contaminated with multiple sources, naturally or artificially, and their performance was measured through cryogenic RF tests before and
after plasma cleaning. These experiments proved that plasma processing successfully
removed hydrocarbon-related field emission from cavities artificially contaminated,
but also from a cavity with natural and unknown FE source. In some cases of more
extreme contamination through vacuum failure simulation conducted in air (not in a
cleanroom), plasma processing was not able to recover the cavity's performance. An
ongoing analysis of the cavity contaminants is presented here, explaining the reason
why some contaminated cavities showed little improvement after plasma processing.
A microscopic study of the effect of plasma processing on the niobium surface
is also presented. Niobium samples prepared with different surface treatments were
analyzed using X-ray photoelectron spectroscopy, scanning electron microscopy and
energy-dispersive X-ray spectroscopy. The samples were subjected to plasma processing and analyzed again, in order to draw a comparison and identify possible surface
changes caused by the reactive oxygen contained in the glow discharge. The samples
were prepared with different surface treatments in order to understand if plasma processing
may affect them differently. This study showed a possible increase in the oxide
thickness after plasma processing and a reduction of the energy difference between the
pentoxide and the metal peaks. In preparation for this study, the near-surface region
of one niobium sample was investigated with X-ray photoelectron spectroscopy at
various steps of sputtering and subsequent oxide regrowth in air. The results showed
that the majority of the oxide is composed of Nb2O5, however, the presence of two
suboxides (NbO, NbO2) is observed, plus an additional peak (attributed to Nb2O)
measured both during sputtering and oxide regrowth. Show less

Details
Department

PHYS / Physics

Title

FIELD EMISSION MITIGATION VIA IN-SITU PLASMA PROCESSING IN 1.3 GIGAHERTZ 9-CELL LCLS-II CAVITIES

Institution

Illinois Institute of Technology

Creator(s)

Giaccone, Bianca

Advisor(s)

Zasadzinski, John

Date

2021

Description

Field emission (FE) is one of the limiting factors in superconducting radiofrequency cavities' performance. It is known that even a few monolayers of surface adsorbed contaminants can lower the... Show moreField emission (FE) is one of the limiting factors in superconducting radiofrequency cavities' performance. It is known that even a few monolayers of surface adsorbed contaminants can lower the niobium work function and increase the FE. In order to address the field emission that may arise once the accelerator is already assembled, it was decided to develop plasma processing for the Linac Coherent Light Source II, a method to mitigate field emission in-situ. Starting from Doleans's successful experience with plasma processing for high beta cavities, Fermi National Accelerator Laboratory is developing plasma cleaning for TESLA shaped 1.3 GHz 9-cell cavities. A new method of ignition based on the higher order modes and couplers was developed, along with a detection procedure that allows to identify the location of the plasma inside the cavity. In this work are presented the results of plasma processing applied to 1.3 GHz cavities, both single-cell and 9-cells. The cavities were contaminated with multiple sources, naturally or artificially, and their performance was measured through cryogenic RF tests before and after plasma cleaning. These experiments proved that plasma processing successfully removed hydrocarbon-related field emission from cavities artificially contaminated, but also from a cavity with natural and unknown FE source. In some cases of more extreme contamination through vacuum failure simulation conducted in air (not in a cleanroom), plasma processing was not able to recover the cavity's performance. An ongoing analysis of the cavity contaminants is presented here, explaining the reason why some contaminated cavities showed little improvement after plasma processing. A microscopic study of the effect of plasma processing on the niobium surface is also presented. Niobium samples prepared with different surface treatments were analyzed using X-ray photoelectron spectroscopy, scanning electron microscopy and energy-dispersive X-ray spectroscopy. The samples were subjected to plasma processing and analyzed again, in order to draw a comparison and identify possible surface changes caused by the reactive oxygen contained in the glow discharge. The samples were prepared with different surface treatments in order to understand if plasma processing may affect them differently. This study showed a possible increase in the oxide thickness after plasma processing and a reduction of the energy difference between the pentoxide and the metal peaks. In preparation for this study, the near-surface region of one niobium sample was investigated with X-ray photoelectron spectroscopy at various steps of sputtering and subsequent oxide regrowth in air. The results showed that the majority of the oxide is composed of Nb2O5, however, the presence of two suboxides (NbO, NbO2) is observed, plus an additional peak (attributed to Nb2O) measured both during sputtering and oxide regrowth. Show less

Type

Dissertation

File type

application/pdf

Subject

Physics
Applied physics
Field emission
Glow discharge
LCLS-II
niobium oxide
Plasma processing
SRF cavities

Access

Restricted Access

Rights

In Copyright
http://rightsstatements.org/page/InC/1.0/

Identifier

http://hdl.handle.net/10560/islandora:1011772
